「北上」詳細写真
KITAKAMI detail images

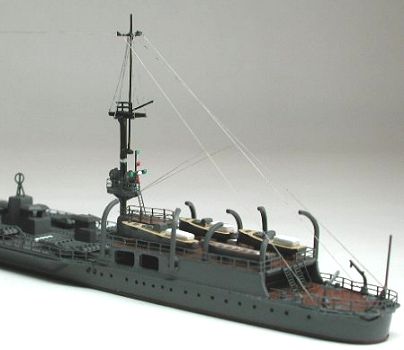

重雷装艦時代の資料にほとんどお目にかからないので、学研「特型駆逐艦」のイラストを参考にさせていただきました。それに従い、後部艦橋上部をリノリウム色で塗装してあります。
手すりとラッタルはエッチングパーツを使用。煙突の雨水除けカバー、方位測定儀、、後マストのヤード、艦尾信号燈は、0.2mmφ、0.25mmφ、0.3mmφ真鍮線で作ってあります。艦尾ダビッドはエッチングパーツです。
The data and drawings in a heavy torpedo-equipped ship that
deserve a reference hardly exist. So, I refered the illustration
of the book that was published GAKKEN. In accordance with this
illustration I coated the back bridge upper part with linoleum
color.
I used the etching parts for the handrails, ladders and stern
derricks. I made the funnel frames for canvas cover and
goniometer antenna with a 0.2 mmφ brass rod. I made the yard of
both masts, manoeuvring lights with a 0.25mmφ and 0.3mmφ brass
rod.

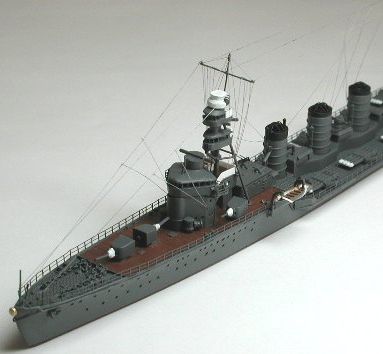

14cm砲塔は従来のピットロードの武装セットではかなりオーバースケールでしたが、このキットではスケールダウンして違和感なく出来ています。

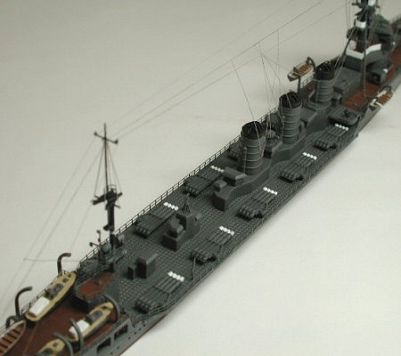

搭載された92式3型4連装魚雷発射管ですが、ごく最近出版された学研の太平洋戦史シリーズ「球磨・長良・川内型」によると、多面形の箱のようなシールドが着けられていたようです。作例では、キットのパーツをそのまま使ってあります。
The 14cm turrets in the armaments set of PITROAD were too big.
The 14cm turrets of this kit have modified size. Thus, sense of
incongruity decreased.
The fact that the box like shield was attached to the quadrupe
Type 92 Model 3 torpedo-tube mount became clear recently. Because
the detail of the shield is indistinct so far, I used the parts
of torpedo tube incluiding in the kit.
